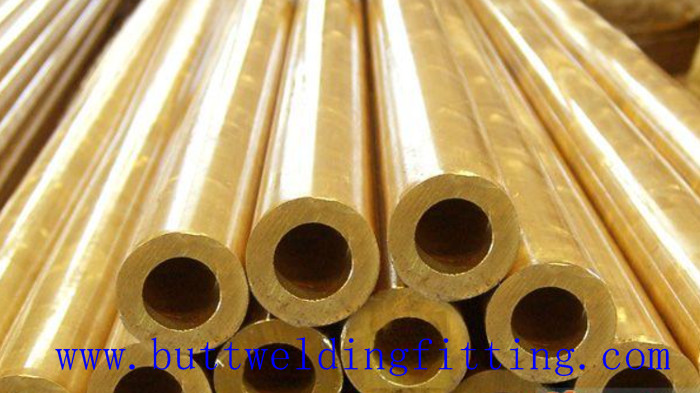

Copper Nickel Tube C70600(90:10), C71500 (70:30) ,Size1/2- 60inch
Copper Nickel tube/pipe
C70600, C71500
1.1.1 Specifications
1) Grade : C71500 C70600
2) Diameter :10mm-55mm
3) Wall thickness : 0.5mm-3mm
4) Length : 1000mm-8000mm
5)Temper: soft ,Hard
Nickel -Copper Tube :
We produce the tubes at different diameters, wall thicknesses and lengths according to your specific requirements.
Specification of Nickel-Copper Tube:
1) Grade:C71500 C70600
2) Diameter: 10mm-55mm
3) Wall thickness: 0.5mm-3mm
4) Length: 1000mm-8000mm
5) Temper:Soft, Half Hard ,Hard
More detailed imformation as the following table:
| Grade | Temper | Section Size (mm) | Length |
| Outer Diameter | Wall Thickness |
| CuNi30Mn1Fe (C71500) | Soft | Φ12 ~ 55 | 0.75-3.0 | 1000 ~ 8000 |
| Half Hard | Φ10 ~ 50 | 0.75-3.0 | 1000 ~ 8000 |
| Hard | Φ10 ~ 50 | 0.75-3.0 | 1000 ~ 8000 |
| CuNi10Fe1Mn ( C70600 ) | Soft | Φ12 ~ 55 | 0.5-3.0 | 1000 ~ 8000 |
| Half Hard | Φ10 ~ 50 | 0.75-3.0 | 1000 ~ 8000 |
| Hard | Φ10 ~ 50 | 0.75-3.0 | 1000 ~ 8000 |
Material: Inconel 625, 600, 601, 718, X-750, 925.
Standard: ASTM, AMSE, DIN, JIS,GB
Out Diameter:(1/2''-30'')5mm-762mm
Wall thickness:Sch5S-XXS
Length: 3m-6m or as required
Package:Standard seaworthy package(wooden boxes package,pvc package, and other request package)
Production capacity: 30 tons per month
Delivery time:15-20 days or based on order quantity
Payment terms:30% advance, balance against copy of B/L or L/C at sight.
Unique technology nickel plated copper tube with Ni200/201
| Material | UNS NO2200, UNS NO2201, N4,N5,N6,N7,N8 |
| Standard | ASTM B829-04, GB 2882-81 |
| Specification | Φ10-Φ168 x0.5-10x 100-18000 MM |
| Surface | polished or as you requested |
| Delivery state | annealed |
| Application | Heat exchanger coil pipe, Chemical processing, Marine Engineering, Power Generation, Oil and Gas Extraction, Petrochemical processing, Telecommunications Etc. |
| Inspection Equipment | Nondestructive Tester; UT Testing Detector; Tensile Tester, Digital Ultrasonic Detector; Infrared Tester; HV Hardness Tester |
| Payment Terms | L/C, T/T, Western Union |
| Lead Time | 7-15days |
| Package | Wooden case as outside, plastic bag as inside |
| Advantages of us | (1) CE and ISO9001-2008 certified (2)SGS TÜV Rheinland & BV Audited company (3) third-party verification service provider (4) most convenient transport & prompt delivery (5)competitive price with best service (6) Industry experience over 10 years |
| Product Feature | (1) Excellent corrosion resistant to turbulently used in condensers for coastal power plants, petroleum refineries and chemical plants. (2) High impingement corrosion resistant to brackish seawater at velocities up to 3 to 4 m/sec used in desalination plants and other seawater condenser application. |
