Copper Nickel / Cu - Ni Weldolet copper nickel pipe C70600 C71500 C71640

Name: Copper Nickel Cu Ni Weldolet copper nickel pipe C70600 C71500 C71640
Brand: TOBO/TPCO/TISCO/VALIN/METAL
Price: 1 USD

Buy cheap Copper Nickel / Cu - Ni Weldolet copper nickel pipe C70600 C71500 C71640 product

Brand Name : TOBO/TPCO/TISCO/VALIN/METAL

Model Number : Copper Nickel tube/pipe

Certification : ISO/PED/TUV/SGS/LR/BV

Place of Origin : China/Japan/Germany

MOQ : 1M

Price : USD Depending on quantity

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1，,000 Tons per month

Delivery Time : 10-100 days depending on quantity

Packaging Details : PLY-WOODEN CASE OR PALLET

Material Grrade : Copper Nickel Elbolet: C70600(90:10), C71500 (70:30), C71640

Standard : ASME A213 A312

Type : Seamless or weld

Size : 1-96 inch

Steel Grade : 400 Series

Thickness : 1mm to 150mm

Outer Diameter : from 6mm to 800mm

Contact Now

Copper Nickel / Cu - Ni Weldolet copper nickel pipe C70600 ( 90:10 ) , C71500 ( 70 : 30 ) , C71640

Specifications

1) Grade : C71500 C70600
2) Diameter :10mm-55mm
3) Wall thickness : 0.5mm-3mm
4) Length : 1000mm-8000mm
5)Temper: soft ,Hard

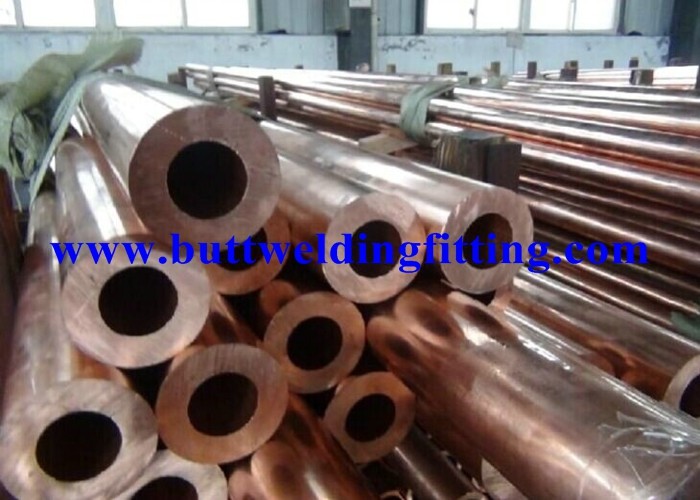

Nickel -Copper Tube :

We produce the tubes at different diameters, wall thicknesses and lengths according to your specific requirements.

Specification of Nickel-Copper Tube:
1) Grade:C71500 C70600
2) Diameter: 10mm-55mm
3) Wall thickness: 0.5mm-3mm
4) Length: 1000mm-8000mm
5) Temper:Soft, Half Hard ,Hard

More detailed imformation as the following table:

Grade	Temper	Section Size (mm)		Length
Grade	Temper	Outer Diameter	Wall Thickness	Length
CuNi30Mn1Fe (C71500)	Soft	Φ12 ~ 55	0.75-3.0	1000 ~ 8000
	Half Hard	Φ10 ~ 50	0.75-3.0	1000 ~ 8000
	Hard	Φ10 ~ 50	0.75-3.0	1000 ~ 8000
CuNi10Fe1Mn ( C70600 )	Soft	Φ12 ~ 55	0.5-3.0	1000 ~ 8000
	Half Hard	Φ10 ~ 50	0.75-3.0	1000 ~ 8000
	Hard	Φ10 ~ 50	0.75-3.0	1000 ~ 8000

1) Superior quality copper nickel pipes
2) Offer a wide range of copper Tubes,pipes
4) Grade:C70600 (90/10) & C71500 (70/30)

PIPES:

RANGE
15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS

FORM
SEAMLESS / ERW / WELDED IN ROUND & SQUARE .

Stainless Steel

ASTM / ASME SA 312 GR. TP 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316TI , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H , 904L .

ASTM / ASME SA 358 CL 1,CL 2 & CL 3 GR . 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316H , 321 , 321H , 347 .

DUPLEX STEEL

ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760 .

Nickel Alloy

ASTM / ASME SB 163 UNS 2200 ( NICKEL 200 )
ASTM / ASME SB 163 UNS 2201 (NICKEL 201 ),
ASTM / ASME SB 163 / 165 UNS 4400 (MONEL 400 )
ASTM / ASME SB 464 UNS 8020 ( ALLOY 20 / 20 CB 3 ),
ASTM / ASME SB 704/705 UNS 8825 INCONEL (825)
ASTM / ASME SB 167 / 517 UNS 6600 (INCONEL 600 )
ASTM / ASME SB 167 UNS 6601 ( INCONEL 601 ),
ASTM / ASME SB 704 /705 UNS 6625 (INCONEL 625)
ASTM / ASME SB 619/622/626 UNS 10276 ( HASTELLOY C 276 )

Copper Alloy

ASTM / ASME SB 111 UNS NO. C 10100 , 10200 , 10300 , 10800 , 12000,12200, 70600 , 71500 .

ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

TUBES:

Range
6.35 MM OD UP TO 254 MM OD IN 0.6 TO 20 MM THK .

Form
SEAMLESS / ERW / WELDED IN ROUND & SQUARE WITH & WITH OUT PVC.

Stainless Steel

ASTM / ASME SA 269 GR. TP 304 , 304L , 316 , 317 , 321 .

ASTM / ASME SA 213 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H,904L .

Duplex Steel

ASTM / ASME SA 790 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760 .

Nickel Alloy

Copper Alloy

ASTM / ASME SB 111 UNS NO. C 10100 , 10200 , 10300 , 10800 , 12000,12200, 70600 , 71500 .

ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
