Product Description
Copper and copper alloy tubes for industry are superior at thermal conductivity, corrosion resistance, physical properties and mechanical properties. Using in the field of Shipbuilding, Heat exchanger, Heating coil, Desalination plants, Petrochemistry equipment and offshore project.
Products
- COPPER TUBES
- BRASS TUBES
- AL-BRASS TUBES
- ALUMIN TUBES
- COPPER NICKLE TUBES
- COPPER CHROMIUM TUBES
- HEAT-TANSFER TUBES
| PRODUCT | O.D (MM) | THICKNESS (MM) |
| MAX | MIN | MAX | MIN |
CUNI 90/10
PIPE
C7060 | 419.1 | 6 | 14 | 0.5 |
CUNI 70/30
PIPE
C7150 | 168 | 6 | 12 | 0.5 |
ADMIRALTY
BRASS PIPE
C4430 | 110 | 6 | 10 | 0.5 |
| AL-BRASS PIPE
C6870 C6871
C6872 | 110 110 110 | 6 6 6 | 10 10 10 | 0.5 0.5 0.5 |
BRASS PIPE
C2600
C2700 | 110 110 | 3 3 | 10 10 | 0.2 0.2 |
COPPER PIPE
C1100
C1220 | 219 219 | 3 3 | 15 15 | 0.4 0.4 |
TEMPER: H, 1/2H, 1/4H, OL, O
Manufacturing Capacity of Welded
| PRODUCT | O.D (MM) | THICKNESS (MM) |
| MAX | MIN | MAX | MIN |
CUNI 90/10
PIPE
C7060 | 914 | 355.6 | 12 | 4 |
Production Item
| Products | ALLOY NO. |
| JIS H3300 | ASTM B466 | BS2871 (PART 3) | AS1752 | DIN |
| Copper Nickel (90/10) Tube/Pipe | C7060T | C70600 | CN102 | C70600 | DIN17644 CuNi10FeMn 20872 |
| Copper Nickel (70/30) Tube/Pipe | C7150T | C71500 | CN107 | C71500 | DIN17644 CuNi30FeMn 2.0882 |
| Admiralty Brass Tube/Pipe | C4430T | C44300 | CZ111 | - | - |
| Aluminum Brass Tube/Pipe | C6870T C6871T C6872T | C68700 | CZ110 | C68700 | - |
| Brass Tube/Pipe | C2600T | C26000 | CZ126 | - | DIN17660 |
| Copper Tube/Pipe | C1220T | C12200 | C106 | C12200 | DIN 1786 SFCuF37 |
Specifications

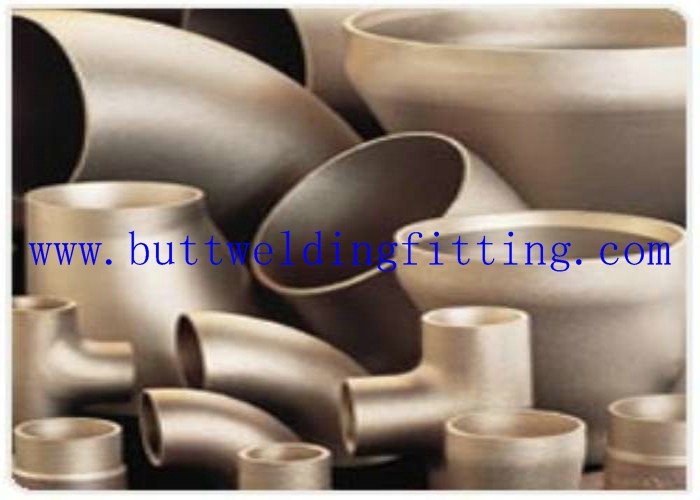

Cupronickel Pipe Fitting
Seamless ERW Welded
Elbow Tee Reducer Cap
EEMUA 146 C7060x Copper Nickel 90/10
TOBO Industrial specializes in the production and supply of copper-nickel alloys for seawater piping system. Since decades, these alloys have successfully used in:
- Merchant and military shipbuilding
- Offshore oil and gas installations
- Coastal petroleum and petrochemical processing plants
- Seawater desalination plants
- Coastal electricity generation plants
Size Range - ½ Inch (16 mm OD) to 16 inch (419 mm OD)
Wall Thickness- 16 Bar (232 PSI) & 20 Bar (290 PSI)
Our Offshore Product Range is based on:
- EEMUA –144: 1987 Tubes1 Seamless and Welded
- EEMUA –145: 1987 Flanges Composite and Solid
- EEMUA –146: 1987 Fittings
Form -
- Pipe & Tube
- Elbow - 45º& 90º
- Tee - Equal & Reducing
- Reducer - Concentric & Eccentric
- Cap
- Weldolet
- Threadolet

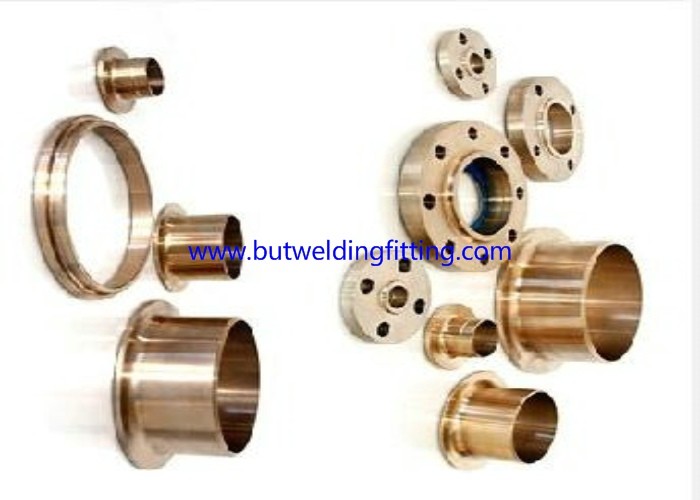

- Slip On Flange
- Weld Neck Flange
- Blind Flange
Copper-nickel alloys are widely applied in:
- Seawater cooling systems
- Fire water systems
- Sanitary systems
- Deck steam pipes
- Deluge systems
- Hydraulic and pneumatic systems
- Seawater feed lines to desalination and processing units
- Splash zone sheathing
