Brand Name : TOBO/TPCO/TISCO/VALIN/METAL
Model Number : TP304/304L,TP316/316L,TP304H,TP347H, TP317L,TP321/321H
Certification : ISO/PED/TUV/SGS/LR/BV
Place of Origin : China/Japan/Germany
MOQ : 0.5-1 tons
Price : negotiable
Payment Terms : T/T, L/C, Western Union, MoneyGram
Supply Ability : 7500 tons per year
Delivery Time : 15days->
Packaging Details : in plastic bags then in bundles
Standard : EN10216-5,EN10216-2,DIN 17456,DIN 17458,ASTM A312, A213,A269,A511,A789, A790 ETC,GOST 9941,JIS G3459
Color : white Silver gold
Length : 1m-10000m
Types : steel pipe
Material Grade : TP304/304L,TP316/316L,TP304H,TP347H, TP317/317L,TP321/321H,TP310/310S
ASTM A312 / A269 / A213 Stainless Steel Seamless Pipe/TUBE For Fluid, Annealed And Pickled
Quick Detail:
1.Material: TP304/304L,TP316/316L,TP304H,TP347H, TP317/317L ETC
2.O.D: 6mm-830mm , Thickness:0.6-60mm
3.Surface: Solid Annealed / Pickling / 180# 240# 320# 400#
4.Certificate: PED, GOST, GB/T19001-2000, ISO
Name | Stainless Steel seamless Pipe |
Standard | EN10216-5 , EN10216-2,DIN 17456 , DIN 17458,ASTM A312, |
Material Grade | TP304/304L,TP316/316L,TP347/347H, TP321/321H, TP310/310S,TP317/317L |
TP410 TP410S TP403 | |
S31803,S32205,S32750 | |
Diameter | OD: 6-830mm |
W.T: 0.6mm - 60mm | |
Length | Up to 13 meter or as customers' request |
Tolerance | According to the Standard. |
Surface | Natural Color of annealing & pickling, 180G, 320G, 400G Satin / Hairline |
400G, 500G, 600G or 800G Mirror finish | |
Test | UT, ET, HT, RT,ect, and others according to the standard, |
Stainless Steel Seamless Pipe:
1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include “Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”
6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
8.MTC: BWSS Official Original MTC paper will be supplied for each order.
OUR TOBO GROUPThe safety in production, quality first.
Specialized production workshop, professional production staff.
Shop the '7 s' principle
The standardized production, the comprehensive treatment
TOBO GROUP
Make development by enlarging scale brand building and internationalization.
Keep Challenging and Innovation.
Advance manufacturing instruments.
Create perfect quality.
Take strict testing as guarantee, upgrade grade as object.
EXHIBITION AND CUSTORMER SATISFACTORY
APPLICATIONS FIELD :
ndustry | Applications | Industry | Applications |
Chemical | Heat Exchanger,Boiler | Sugar | Evaporators, Condensers, Driers |
Petrochemicals | Condensers | Automobiles | Muffler Tubes Hydraulic Tubing |
Refineries | General Piping | Construction | Architectural Furniture |
Fertilizers | Pressure Vessels | Pharmaceuticals, Dairy, Food & Beverages | Machineries Process Piping |
Paper & Pulp | Industrial Equipments | Submersible Pumps | Pump Casing Applications |
Engineering | Machineries Instrumentation Tubing |
|
![]() |

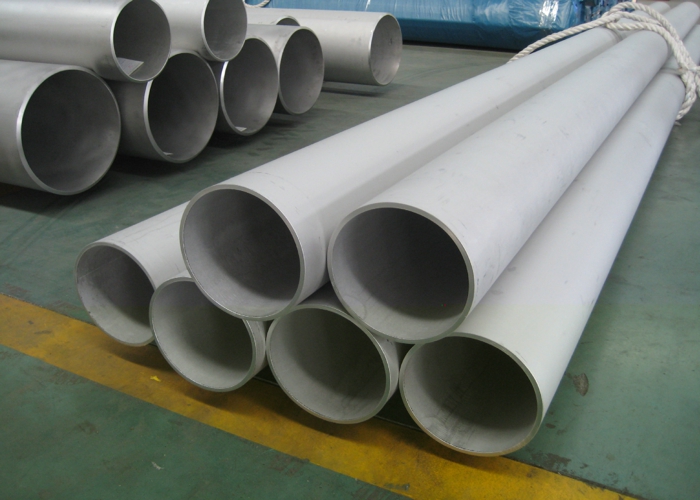

ASTM A312 A269 A213 Stainless Steel Round Tube with Annealed Pickled , 6mm-830mm OD Images |
