Butt Welding Stainless Steel Lap Joint Stub Ends Cold Formed For Industry

Name: Butt Welding Stainless Steel Lap Joint Stub Ends Cold Formed For Industry
Brand: TOBO
Price: 1 USD

Buy cheap Butt Welding Stainless Steel Lap Joint Stub Ends Cold Formed For Industry product

Brand Name : TOBO

Model Number : 1/2"-72"

Certification : SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED

Place of Origin : CHINA

MOQ : 3PCS

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 9980000PCS Per Month

Delivery Time : 15DAYS

Packaging Details : PLY-WOODEN CASE OR PALLET

Type : stub end

Surface treatment : polishing

Head Code : round

End treatment : PE/BE

Technics : cold formed

Connection : Welding

Application : Industry ,Oil, exhaust

Contact Now

Butt Welding Stainless Steel Lap Joint Stub Ends Cold Formed For Industry

Quick Details

Technics:	cold formed	Place of Origin:	Shanghai, China (Mainland)	Model Number:	1/2"-72"
Brand Name:	TOBO	Connection:	Welding	Shape:	Equal
Material:	Stainless Steel, Stainless Steel 304,316L,310,321	Type:	stub end	Surface treatment:	polishing
Head Code:	round	Application:	Industry ,Oil, exhaust	End treatment:	PE/BE

Packaging & Delivery

Packaging Details:	wooden packing
Delivery Detail:	5-20days

Type	stainless steel ,alloy steel,Carbon steel (seam & seamless) ASTM A234and A105 WPB
Size	Seamless 1/2" To 24" Welded To 72"
Wall thickness	Sch5S-Sch160, XS,XXS(1.2mm~34mm)
Standards	ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc
Material	Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Alloy Steel:s31803.s32750.S32760. Temperature: ASTM A420 WPL 1, WPL 3, WPL 6
Surface treatment	Sand Rolling, Sand Blasting ,Acid Cleaning.
Packing	wooden case, pallet or as customers’ requirement
Applications	Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc
Min order	10 pieces
Delivery time	According to client’s requirement
Productivity	120000 ton per year

Butt Welding Stainless Steel Lap Joint Stub Ends Cold Formed For Industry

Product Description

1.Name:	Stainless steel lap joint stub end
2. Material:	AISI 304, AISI 316L
3. Standard:	DIN/SMS/ISO/IDF/3A/RJT/DS/BS/BPE
4. Connection:	Welding
5.Size:	1/2"-24"
6. Finish:	Mirror polish, semi bright etc

Lap joint (stub Ends)

Lap Joints also named stub Ends and vanstone flared laps,it is used in place of welded flanges where rotating back up flanges are desired.it makesquick disconnection of the particular section easy.
Lap Joints are consisted of three series. Type A & B Stub Ends are made similar to forging pipe fittings such as elbows and tees. Type C Stub Ends are made by customized dimensions.

Lap joint( stub ends)
Pattern	lagre OD lap joint,alloy lap joint,long Lap joint
size	1/8”-48”
Pressure class	100#-2500#

Lap joint (stub Ends)

long lap joint	Lap joint	stainless lap joint	grooved lap joint
Material
Carbon	SA234 WPB, SA234 WPC,SA42 WPL6, SA42 WPL3, WP1. MSS-SP75 WPHY,WPHY 46,WPHY 52,WPHY 56,WPHY 60,WPHY 65, WPHY 70 DIN 1629 St37, RST37.2 St52
Stainless	ASTM/ASME SA403 304,304L ,316, 316L, WP304L, 3 WP316 WP347 (H) ,WP317 (L),WP321. DIN 1.4301, 1.4306, 1.4401, 1.4571 JIS SUS304,SUS304, SUS304L, SUS316, SUS316
Alloy	ASTM/ASME SA234 WP12, WP11,WP22, WP5, WP9, WP91. ASTM B361 GR.3003-6061, ASTM B366 UNS N04400,N08800, N08825 N1001-N10276-N10665, WPT2-WPT12. ASTM 182 F1, F5, F6, F7, F9, F11, F12, F22, F51. 16MnR Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1, St45.8
Others	Copper, Aluminium,Brass,Titanium, Nickel,Nichrome, Al.Bronze Phosphorous Bronze

Product Tags:

Lap Joint Stub End

Stub End Fittings

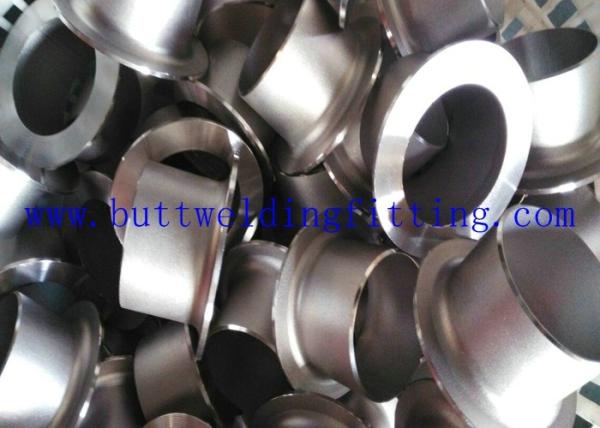

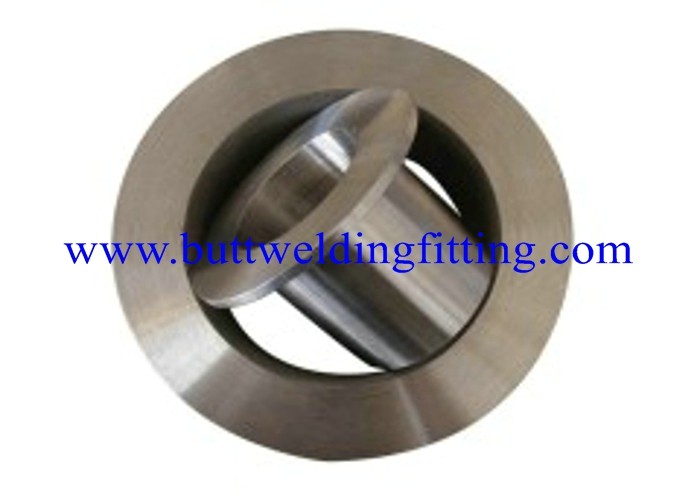

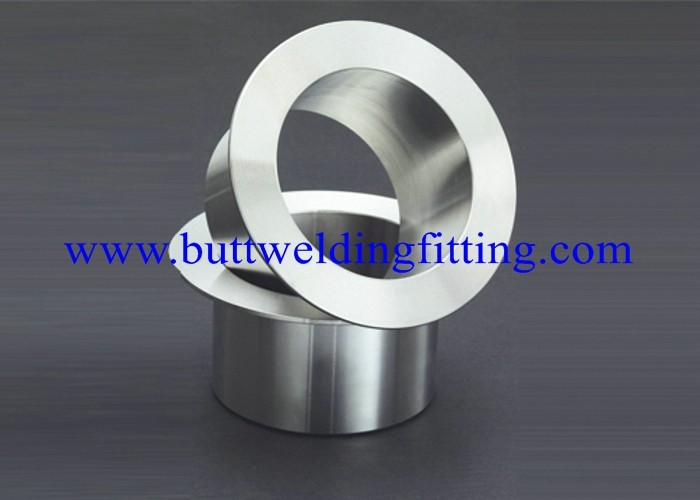

Butt Welding Stainless Steel Lap Joint Stub Ends Cold Formed For Industry Images
